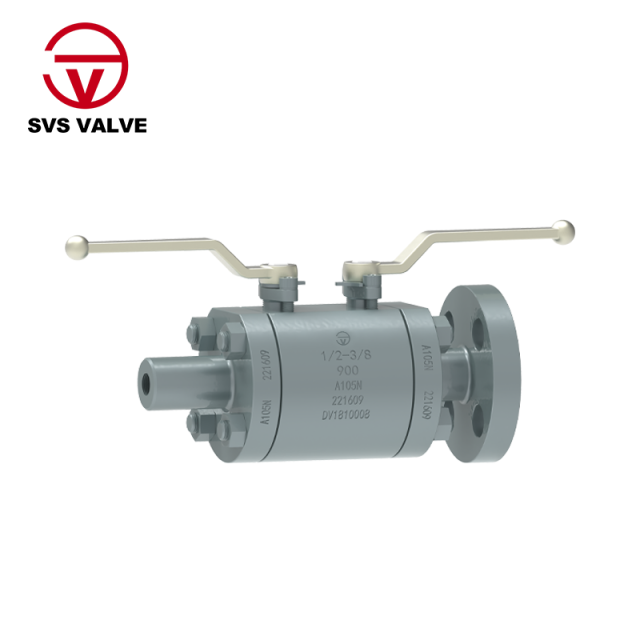

Our Double Block and Bleed (DBB) Ball Valve is engineered to provide the highest level of isolation and safety for critical fluid systems. This single-body valve integrates two ball units and an intermediate vent, allowing for simultaneous or independent operation. Its innovative design guarantees reliable, bubble-tight sealing and a verifiable bleed path, making it the ideal solution for applications where a secure, tamper-proof shutoff is non-negotiable.
Key Features
- Ultimate Isolation: The unique DBB design provides a redundant, verifiable seal, preventing upstream and downstream fluid from mixing.
- Streamlined Design: This single-valve solution replaces a complex multi-valve setup, simplifying your pipeline layout and reducing potential leak points.
- Dual Sealing & Venting: The cavity between the two balls includes an external vent valve, allowing operators to safely check for zero pressure before performing maintenance.
- Robust Construction: Available in fixed ball and floating ball configurations, our DBB valves are built with a sturdy body to ensure long-term durability and performance.
- Enhanced Safety: The DBB feature is a critical safety component, especially for applications where accidental pressure buildup or fluid mixing could be hazardous.
Product Specifications
Body Material: Carbon steel, stainless steel, alloy steel
Nominal Diameter: 1/2" to 4" (DN6 - DN80)
Pressure Range: Class 150 - 600
End Connection: Threaded (with ISO 5211 mounting pad), Socket Weld (ANSI B16.11), Butt Weld (ANSI B16.25), and Flanged (ANSI B16.5)
DBB Functionality: A Technical Clarification
The Double Block & Bleed (DBB) functionality, as defined by industry standards like API 6D, applies exclusively to fixed ball valves. This design requires both upstream and downstream pressure to be present to achieve bidirectional sealing. A DBB valve does not provide "double isolation" when pressure is applied from only one side. Its primary purpose is to allow for safe venting of the intermediate cavity after the two balls have isolated the line.
Our DBB valves are trusted components for critical pipeline isolation, metering, and bleed-off systems across the oil & gas, petrochemical, and power generation industries.
