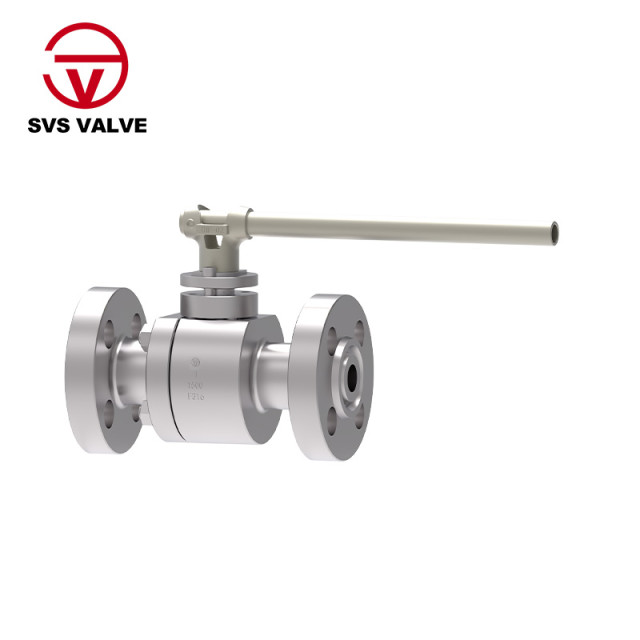

Our High-Pressure Forged Steel Floating Ball Valve is designed to perform flawlessly under severe operating conditions. With a robust forged steel body, this valve provides exceptional durability and structural integrity, ensuring reliable control of media flow in even the most demanding high-pressure applications.
How It Works: The Principle of Self-Sealing
This valve's design features a floating ball supported by two valve seats. Under the pressure of the medium, the ball generates a slight displacement, which forces it against the downstream seat seal ring. This simple yet effective principle guarantees a tight, bubble-free seal at the outlet, providing an extra layer of security in critical high-pressure systems.
Engineered for Safety and Performance
This valve combines rugged construction with a design that prioritizes safety and efficiency.
- Enhanced Safety: Standard features include a fire-safe, anti-static, and anti-blowout stem design. This protects your system and personnel from potential hazards in high-risk environments.
- Streamlined Flow: Available in both full bore and reduced bore types, the valve offers minimal flow resistance, which improves system efficiency and reduces energy consumption.
- Low-Torque Operation: The simple internal structure provides excellent tightness with minimal torque, ensuring smooth and effortless operation.
- Optional Features: An optional locking device and ISO 5211 top flange allow for added security and easy integration with a variety of actuators.
Product Specifications
Body Material: Carbon steel, stainless steel, alloy steel
Nominal Diameter: 1/2" to 6" (DN15 to DN150)
End Connection: RF (Raised Face), RTJ (Ring Type Joint), BW (Butt Weld), THR (Threaded), SW (Socket Weld)
Pressure Range: Class 150 to 2500 (PN16 to PN420)
Operation: Wrench, worm gear, electric actuator, etc.
Standards & Compliance
Our valves are designed and manufactured to meet the most stringent industry standards, guaranteeing quality and performance you can trust.
Design: ISO 17292, API 608, BS 5351, GB/T 12237.
Materials: ASTM A105, ASTM A182-F6, F304, F316, F316L, F51, and other high-grade materials for key components.
